JORC

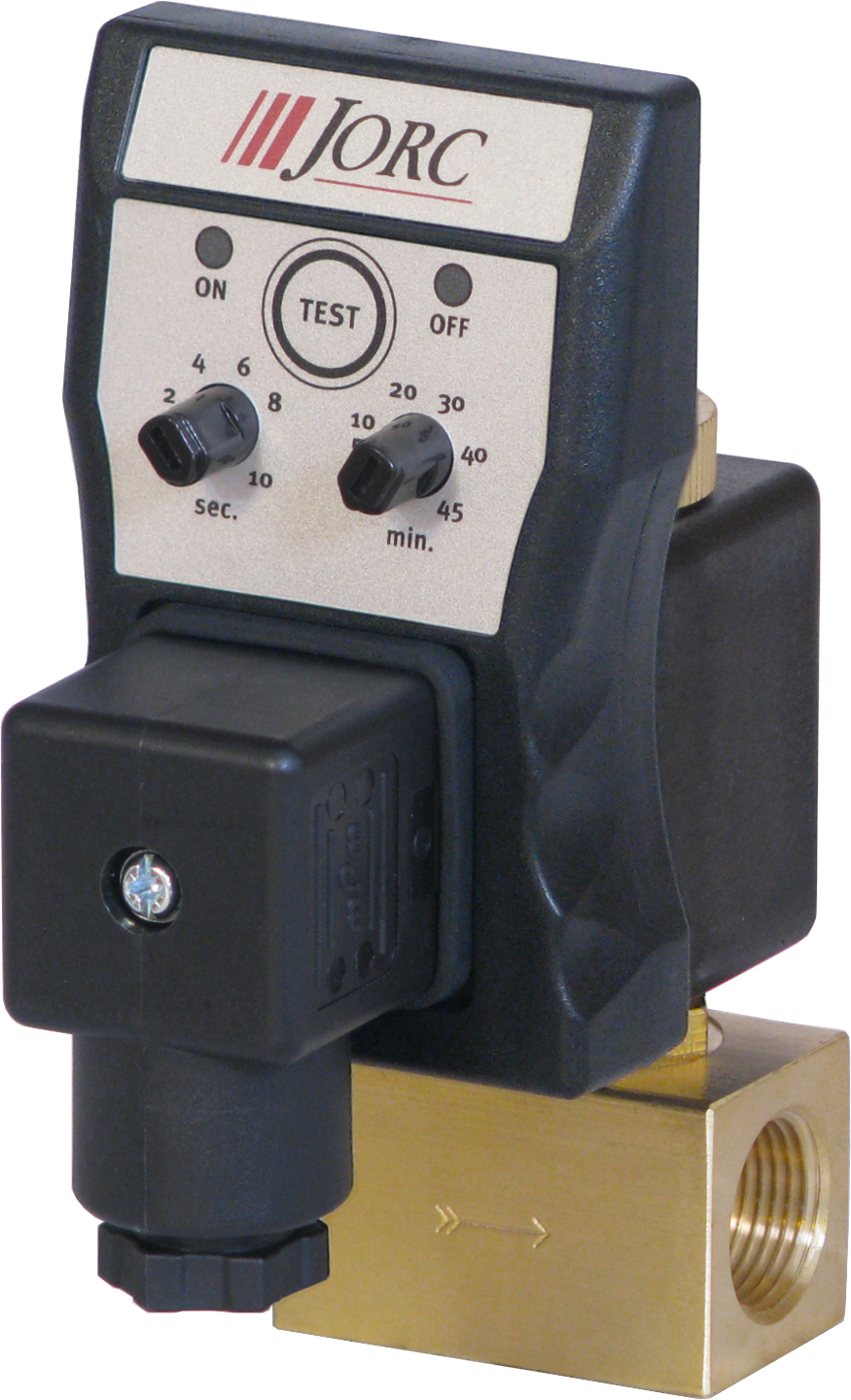

1601 JORC FLUIDRAIN G1/4 4.5 V 230VAC
1 257,25
SEK
Endast 4 i lager
Kategorier:
Condensate drain
Manufacturer: JORC
Specifikationer
- Bemerkung
- Time-controlled condensate drain
- Ambient temperature
- +1°C to +55°C
- Valve seal
- FPM
- Zeitzyklus (On/Off)
- 0.5 - 10 sec / 0.5 - 45 min (depending on the clock model)
- Test function
- Yes
- Clock generator
- PCB/SMD technology ensures consistency of production
- Inlet height [mm]
- 10
- Nominal voltage
- 230 VAC
- Outlet connection
- 1/4" (BSP or NPT)
- Plug connection
- DIN 43650-A
- Valve housing material
- Brass (stainless steel available)
- Cycle display Clock generator
- Bright LED lighting
- Pressure range
- 0 to 16 bar
- Valve type
- 2/2-way, direct acting
- Max. compressor capacity
- Any size
- Timer Zyklusanzeige
- Bright LED lighting
- Maintainable valve
- Yes
- Protection class
- IP65 (NEMA4)
- Valve opening [mm]
- 4,5
- System pressure
- 0 to 16 bar
- Timer cycle range (on/off)
- 0.5 - 10 seconds / 0.5 - 45 minutes
- Timer circuit board
- SMD technology
- Max. compressor capacity
- Unlimited
- Medium temperature
- +1°C to +55°C
- Inlet connection
- 1/4" (BSP or NPT)
- Weight [kg]
- 0,514
