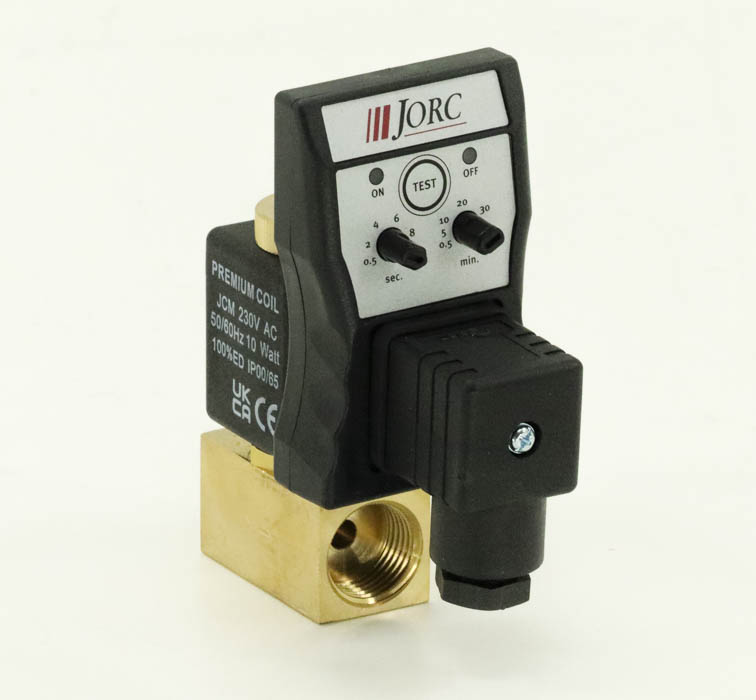

1603 JORC FLUIDRAIN G1/2 4.5 V 230VAC

Specifikationer

Bemerkung

Time-controlled condensate drain

Ambient temperature

+1°C to +55°C

Valve seal

FPM

Zeitzyklus (On/Off)

0.5 - 10 sec / 0.5 - 45 min (depending on the clock model)

Test function

Yes

Clock generator

PCB/SMD technology ensures consistency of production

Inlet height [mm]

10

Nominal voltage

230 VAC

Plug connection

DIN 43650-A

Valve housing material

Brass (stainless steel available)

Cycle display Clock generator

Bright LED lighting

Valve type

2/2-way, direct acting

Maintainable valve

Yes

Protection class

IP65 (NEMA4)

Valve opening [mm]

4,5

System pressure

0 to 16 bar

Max. compressor capacity

Unlimited

Medium temperature

+1°C to +55°C

Weight [kg]

0,501

Outlet connection

1/2" (BSP or NPT)

Inlet connection

1/2" (BSP oder NPT)
