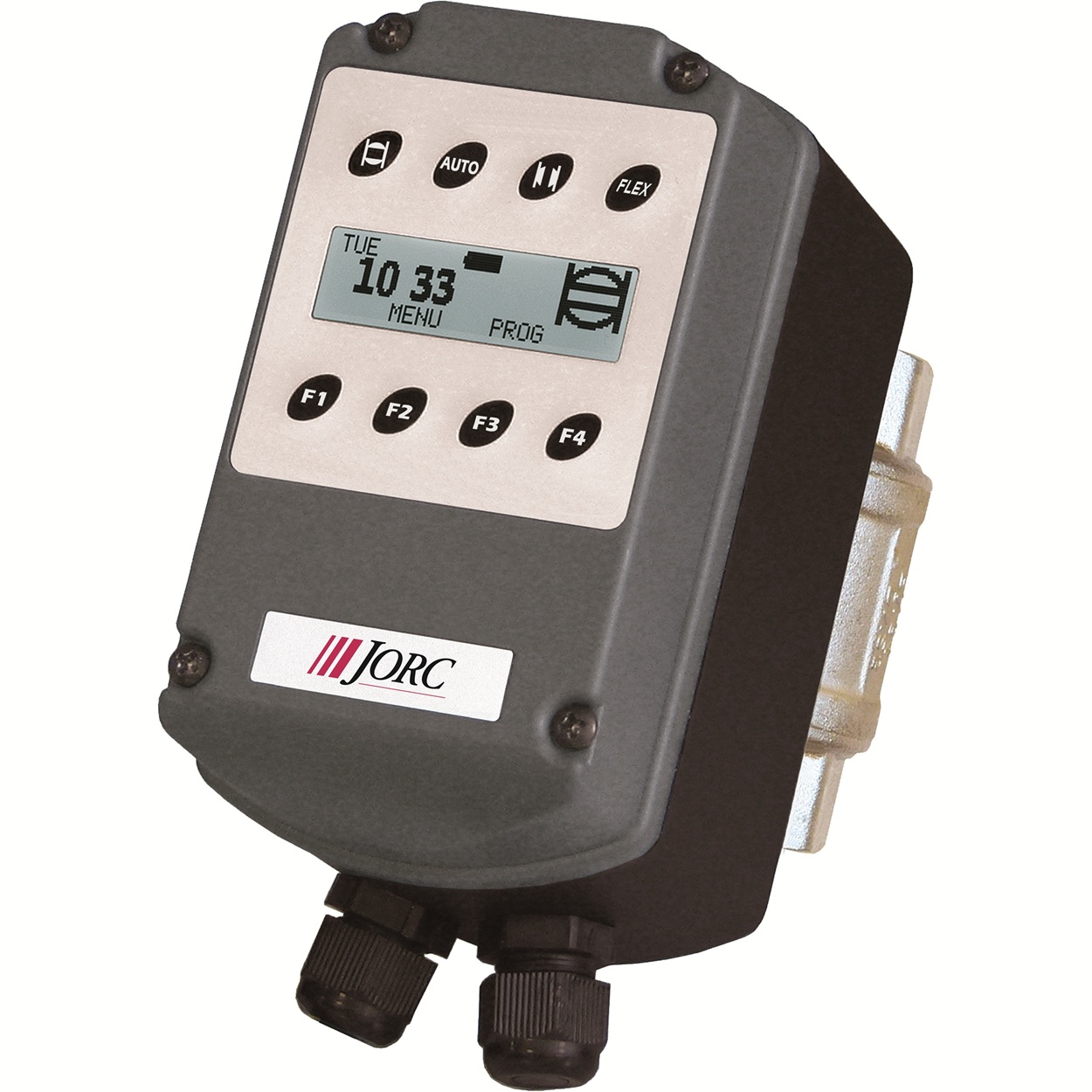

Manufacturer: JORC
Specifikationer
- System pressure
- 0 to 16 bar
- Supply voltage
- 230 VAC
- Ambient temperature
- +1°C to +50°C
- Outlet connection
- 1" (BSP oder NPT)
- Display LCD display
- Date, time, valve status and battery life
- Weight [kg]
- 1,8
- Inlet connection
- 1" (BSP oder NPT)
- Medium temperature
- +1°C to +100 °C
- Valve housing material
- Brass valve, nickel-plated
- Remote control option
- Yes (optional)
- Protection class
- IP54 (NEMA13)
- Programmable options
- Weekly planner, max. 100 switching points spread over 1-7 days
- Duration of valve opening/closing
- 30 sec. (90°)
- Bemerkung
- Compressed air saving device
- Manual override
- Yes
- Battery type
- CR2032, 3 volts
