JORC

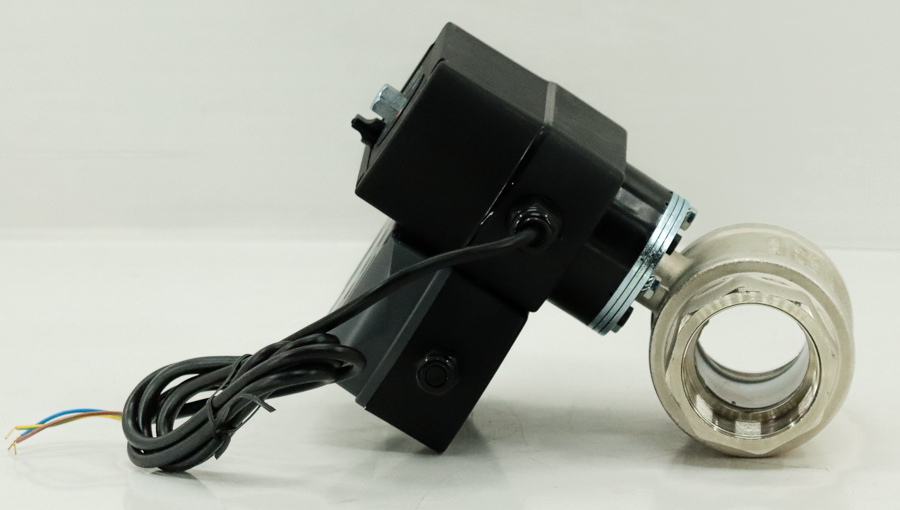

7007 JORC AIR-SAVER G2 230VAC 16bar JORC
11 612,30
SEK
Endast 2 i lager
Kategorier:
Condensate drain
Manufacturer: JORC
Specifikationer
- System pressure
- 0 to 16 bar
- Ambient temperature
- +1°C to +50°C
- Remote control option
- Yes
- Display LCD display
- Date, time, valve status and battery life
- Valve housing material
- Brass valve, nickel-plated
- Protection class
- IP54 (NEMA13)
- Bemerkung
- Compressed air saving device
- Manual override
- Yes
- Battery type
- CR2032, 3 volts
- Supply voltage
- 230 V
- Medium temperature
- +1°C to +100°C
- Weight [kg]
- 5,062
- Programmable options
- Weekly planner, max. 100 switching points, distributed over 1-7 days
- Power consumption
- Approx. 9 W during cycle rotation
- Outlet connection
- 2" (BSP or NPT)
- Duration of valve opening/closing
- 105 sec. (90 °)
- Inlet connection
- 2" (BSP oder NPT)
